Dotykoá obrazovka. Úhlopříčka 55" / 140cm. Full HD rozlišení. Multitouch až 6 dotykovů současně. Zabudované repro. |
Multi-Touch Display 55" Edge LED Backlight, Full HD, Optical Imaging, 6 Touchpoints
Picture/Display
•Diagonal screen size: 54.6 inch / 138.7 cm
•Panel resolution: 1920x1080p
•Optimum resolution: 1920 x 1080 @ 60 Hz
•Brightness: 450 cd/m²
•Contrast ratio (typical): 1300:1
•Dynamic contrast ratio: 500,000:1
•Response time (typical): 12 ms
•Aspect ratio: 16:9
•Viewing angle (H / V): 178 / 178 degree
•Display colors: 1.06 Billion
•Pixel pitch: 0.63 x 0.63 mm
•Surface treatment: Anti-Glare coating
•Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Interactivity
•Multi-touch technology: Optical sensing
•Touch points: 6 simultaneous touch points
•Plug and play: HID compliant
•Protection glass: 5 mm tempered safety glass
Connectivity
•Video input: DisplayPort (1.1a), HDMI, DVI-D, VGA (Analog D-Sub), Component (RCA), Composite (RCA)
•Video output: DVI-I, VGA (via DVI-D)
•Audio input: Audio Left/Right (RCA), 3.5 mm jack
•Audio output: Audio Left/Right (RCA), External speaker connector
•External control: RJ45, RS232C (in/out) D-Sub9
•Other connections: USB, AC-out, OPS
| Supported Display Resolution•Computer formats | |||
| Resolution | Refresh rate | ||
| 640 x 480 | 60, 67, 72, 75Hz | ||
| 800 x 600 | 56, 60, 72, 75Hz | ||
| 1024 x 768 | 60Hz | ||
| 1280 x 768 | 60Hz | ||
| 1280 x 800 | 60Hz | ||
| 1280 x 1024 | 60Hz | ||
| 1360 x 768 | 60Hz | ||
| 1366 x 768 | 60Hz | ||
| 1440 x 900 | 60Hz | ||
| 1600 x 1200 | 60Hz | ||
| 1920 x 1080 | 60Hz | ||
| 1920 x 1200 | 60Hz | ||
Convenience
•Placement: Landscape, Portrait
•Signal Loop Through: DVI, RS232, VGA
•Network controllable: RS232, RJ45
•Picture performance: Advanced color control
•Picture in picture: PIP
•Screen saving functions: Pixel Shift, Low Brightness
•Keyboard control: Hidden, Lockable
•Remote control signal: Lockable
•Ease of installation: AC Out, Smart Insert
•Energy saving functions: Smart Power
•Packaging: Reusable box
•Other convenience: Carrying handles
Dimensions

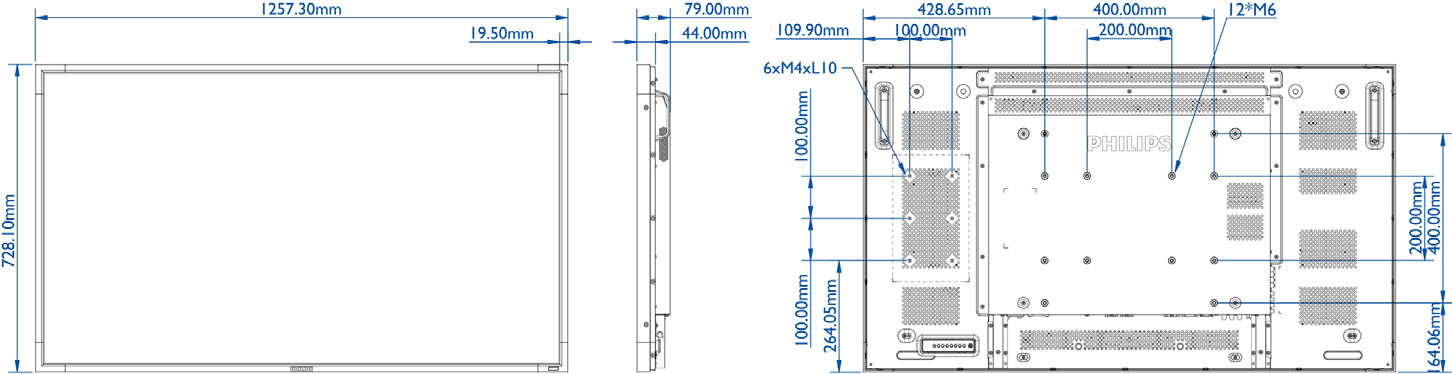

•Set dimensions (W x H x D): 1257.3 x 728.1 x 79 mm
•Bezel width: 19.5 mm
•Product weight: 43 kg
•VESA Mount: 400 x 400 mm, 400 x 200 mm, 200 x 200 mm
•Smart Insert mount: 100 x 200 mm, 100 x 100 mm
Sound
•Built-in speakers: 2 x 10W
Operating conditions
•Temperature range (operation): 5 ~ 40 °C
•Relative humidity: 20 ~ 80 %
•MTBF: 50,000 hour(s)
Power
•Mains power: 90 ~ 240 VAC, 50/60Hz
•Consumption (On mode): 140 W (Typ.)
•Standby power consumption: <0.5W
Accessories
•Included accessories: AC Power Cord, VGA cable, RS232 cable, USB cable, Remote Control, Batteries for remote control, Quick start guide, User manual on CD-ROM
Miscellaneous
•On-Screen Display Languages: English, French, German, Italian, Polish, Turkish, Spanish, Russian,
