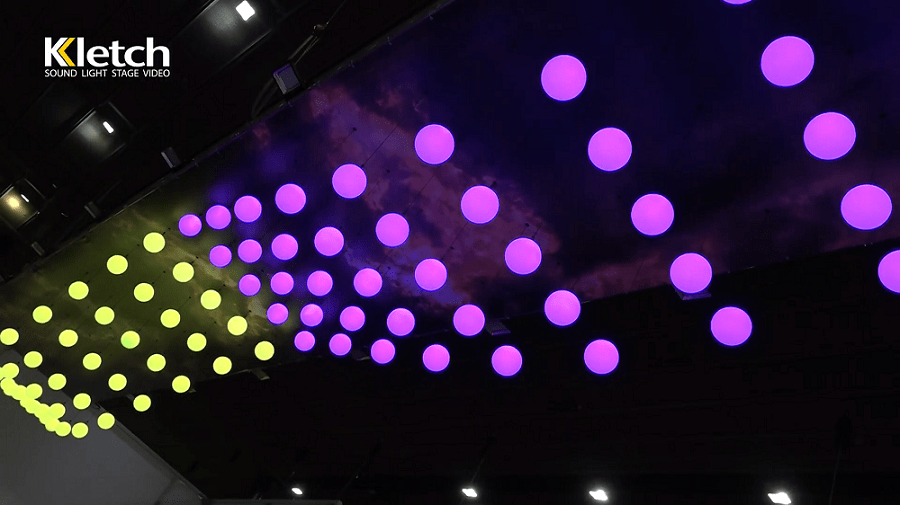

Kinetická koule o průměru 25cm. Délka lana 9m. |
DMX Winch:
Lifting height: 6m / 9m
Lifting speed: 0.75m/s (2018VER)
Load on cable, MAX kg: 2
Net Weight, kg: 8.5
Power consumption, W: 40
Working temperature: 5°c - 45°c
DMX channels: 5/9 Channels
Control mode: DMX512 console or Madrix software
Operation menu: LCD1602 SCREEN DISPLAY
Power Connect: Power Noc : IN & OUT
DMX XLR: 5PIN XLR & 3PIN XLR
power supply: 100V-240V AC, 50-60 Hz
power on cable: 4 channels, var. 1-24V DC 1A(max) for ch
Protection rating: IP20
Dimension,LxWxH: 292 X 292 X 125mm (6m/9m winch)
LED Sphere :
Sphere diameter: 250mm
Weight: approx 1kg
Light source, RGB LEDS: 42PCS TRI SMD
Viewing angle: 360°
Working temperature (t), °c: -10-45
Light diffusing sphere material: white LDPE
Protection rating: IP20
Packing :
Winches: 9pcs in 1 flight case 89x66x54 cm
Balls: 18pcs in 1 flight case 86×59×98 cm
